MCB

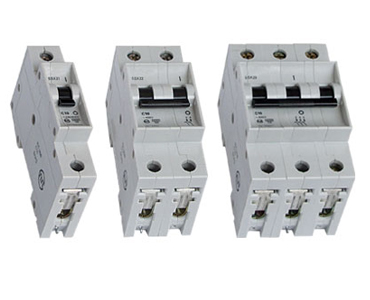

K5SX series mini circuit breaker
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |
Application
K101 series mini circuit breaker is mainly suitable for overload and short circuit protection.It is especially used for illumination and distribution in industry and commerce.It is of pleasing out-look,light weight,reliable performance,high breaking capacity, etc.Its frame and parts adopt plastics of high inflammable resistance and shock resistance for long service life.It is mainly used for overload and short circuit protection with in the circuit of AC 50/60Hz,rated voltage of single pole up to 240V,two,three or four pole up to 415V.It can also be used for an unfrequent switchover of the circuit and illumination under normal conditions.
Specification
Frequency 50Hz/60Hz
Rated voltage 240/415V AC
Rated breaking capacity 3000A(K101) / 6000A(K5SX)
Rated frame current 63A
Rated trip current (A) 2,4,6,10,16,20,25,32,40,50,63A
No.of Pole 1,2,3 pole

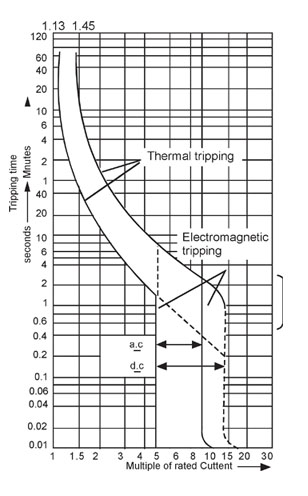

Characteristic Curve
