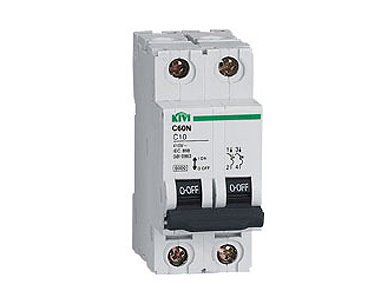

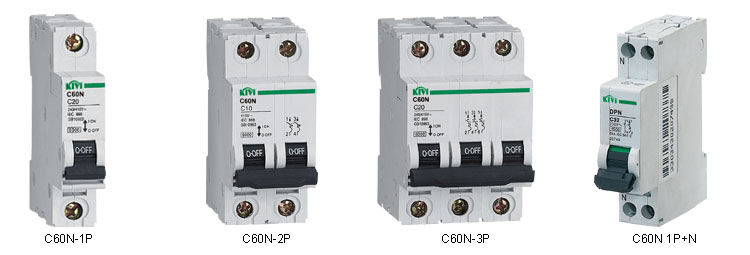

C60N Mini Circuit Breaker
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |
Application
CDSB2 MCB is an all new high performance current device with the ability to disconnect short circuits of up to 10kA. Which is the newest model in 21st century.
CDSB2 MCB has many merits of high protective grade (up to Ip20), high breaking capacity, good reliability of sensitive action, convenient multi-pole assorting, long using life ect. They are mainly used for overload and short circuit protection within the circuit of AC 50Hz, 230V in single pole, 400V in double, three & commerce. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.
Specification
Character Standard Rated
current
(A)
Poles
(P)
Rated
Voltage
(V)
Breaking
capacity
(A)
IEC898 1,2,3,4,5,6,
10,16,20,25,
32,40,50,63A
1 230/240 6000
2,3,4 400/415 6000
1 130 20000
230/240 10000
400/415 3000
2,3,4 230/240 20000
400/415 10000
440 6000

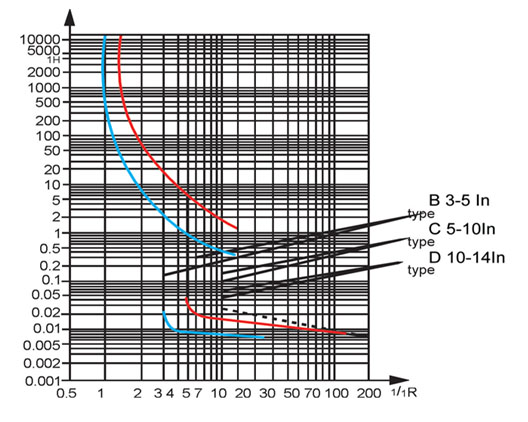

Characteristic Curve
