DB BOX

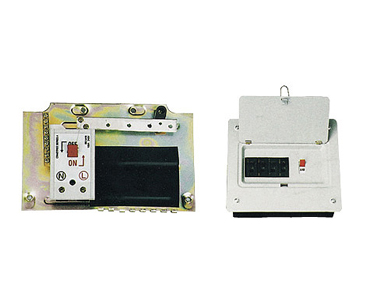

CBT DISTRIBUTION BOARD
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |
■Type CBT distribution boards are designed to accept any combination of C50 single pole,double pole,triple pole MCB’s and RCBO’s (MCB/RCD’s).

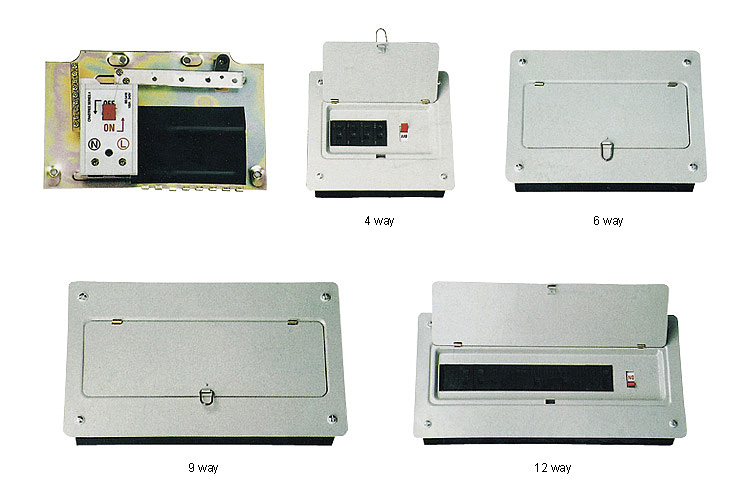

■Modular capacities of type CBT distribution boards are listed in terms of maximum triple MCB ways.Thus,a four way board will accept:4 triple pole MCB’s,6 double pole MCB’s,6 RCB’s(MCB/RCD’s),12 single pole MCB’s or any intermediate combinations.
■All boards are fitted with phase,neutral and earthing busbards,associated MCB connection straps and phase identified barriers.
SMetal Cased
Mounting
Type
MCB
Ways
Box Assembly
Lis No
+ Front
Plate
List No
= Consumer
Unit
List No
Without Hinged Protective Cover (100A)
Surface 4 4/1 + 30 = 204
6 6/1 + 30 = 206
9 9/1 + 31 = 209
12 12/1 + 32 = 212
Flush 6 6/1 + 30/2 = 206/2
9 9/1 + 31/2 = 209/2
12 12/1 + 32/2 = 212/2
Without Hinged Protective Cover
Surface 4 4/1 + 30/1 = 204/1
6 6/1 + 30/1 = 206/1
9 9/1 + 31/1 = 209/1
12 12/1 + 32/1 = 212/1
Flush 6 6/1 + 30/3 = 206/3
9 9/1 + 31/3 = 209/3
12 12/1 + 32/3 = 212/3
Metal Cased Twin-tariff
Mounting
Type
MCB
Ways
Box Assembly
Lis No
+ Front
Plate
List No
= Consumer
Unit
List No
Without Hinged Protective Cover
Surface 5+3 25 + 32/5 = 225
6+6 26 + 2×30 = 226*
Without Hinged Protective Cover
Surface 5+3 25 + 32/15 = 225/1
6+6 26 + 2×30/1 = 226/1*
