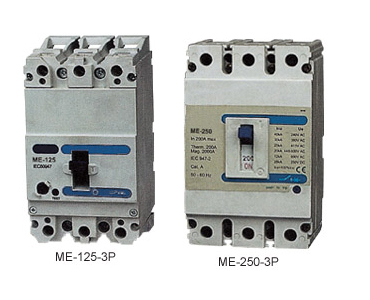

ME moulded case circuit breaker
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |
Specification
ME moulded case circuit breaker are highly specificed. Positive contact indication is standard. with three positions "ON"OFF"and centre "TRIPPED"being provents the MCCBs contacts from being held closed in the event of over current.
ME mounlded case circuit breaker 3 & 1 pole units have a trip to test button provided as standard. all main contacts are of quality. Silver alloy construction for durability. Complying with IEC947-2 is covered by type test and marine approval certification.
1.Mould case circuit breakers 16 to 200A.
2.Available in three ranges: standard,
standard adjustable,
Hi-break adjustable.
3.Complies with IEC60947-2.
4.Current limiting action provides low values of lot-through energy.
TME standard range
MCCB description Standard range
Current ranting (A)
standard range
1 pole list number 3 pole list number
16A ME161 ME163
20A ME201 ME203
32A ME321 ME323
40A ME401 ME403
50A ME501 ME503
63A ME631 ME633
80A ME801 ME803
100A ME1001 ME1003
125A ME1251 ME1253
160A ME1604 ME1603
200A - ME2003
Impulse withstand V. 8KV 8KV
Utilisation category A A
Adjustment thermal Fixed Fixed
Adjustment magnetic Fixed Fixed
Therminal capacity (Max) 120mm2 120mm2
Breaking capacity IEC60947 2/BS EN60947-2(AC 50/60Hz)
690V AC Icu (KA)
Ics (KA)
-
-
12
12
480V AC Icu (KA)
Ics (KA)
-
-
20
20
400V AC
440V AC
Icu (KA)
Ics (KA)
-
-
25
25
380V AC Icu (KA)
Ics (KA)
-
-
30
30
220V AC
240V AC
Icu (KA)
Ics (KA)
25
19
40
40
250V AC Icu (KA)
Ics (KA)
-
-
37
19
