MCCB

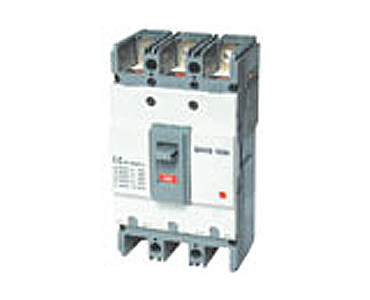

AB Moulded Case Circuit Breaker
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |
Type ABE 33b 50ABE 52b ABE 53bABE 63b
Rated current In (A) 40℃
reference ambient temperature
10,15,20,30,
40,50,60,75,100
125,150,175,
200,225
250,300,350,
400
Number of poles 3 3 3
Max rated service voltage Ui(V) AC 600 600 600
DC 250 250 250
Dimensions and mounting details a 90 105 140
b 155 165 257
c 56 56 95
ca 82 84 145
bb 132 126 215
aa 30 30 44
Dimensions and mounting details GB14048-2 AC
(No symmetry value/symmetry value)
550V 600V 10 10 22
440V 480V 14 14 25
380V 25 25 35
220V 240V 50 50 50
IEC60/947-2
Icu
AC
500V 10 10 10
440V 14 14 25
415V 14 25 35
380V 25 25 25
240V 50 50 50
DC 250V 20 20 20
125V 14 14 14
Connection way Press terminal
Shopping fitting Alarming switch (AL) - -
Auxiliary switch (AUX) - -
Voltage release mounting (SHT) - -
Low Voltage release mounting (UVT) - -
Accessory lead wire terminal platform (LT) - -
Outer operate handle - -
Terminal isolation cover
Automatic tripping device -
Trip button - - Have
