CONTACTOR

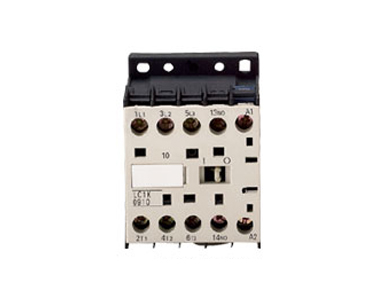

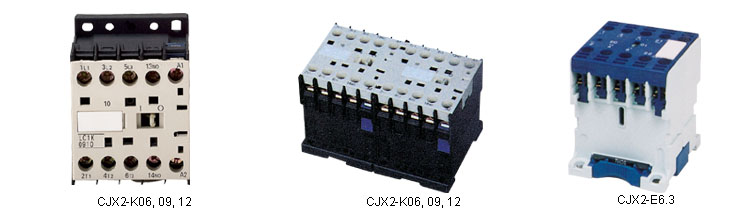

CJX2-K (LC1-K) Series AC Contactor
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |

Application
LC1-K Series AC cortactor is suitable for use in the circuit up to the rate and frequent starting, controlling the AC motor. The addtion of auxiliary contact group to the contactor, combined with the proper thermal relay, can act to protect the circuit bound to overload.
Specifications
Type
Rated working current A
(380V)
AC-3 use group control power KW
Contact data(1)
220V
380/415V
440/500V
660V
CJX2-K06
6
1.5
2.2
3
3
3P+NC 3P+NO
CJX2-K09
9
2.2
4
4
4
3P+NC 3P+NO
CJX2-K12
12
3
3
5
5
3P+NC 3P+NO
Specifications
CJX2-K06
CJX2-K09
CJX2-K12
Use group under AC-3
6
9
12
Rated working current (le)A
5
7.5
10
Conventional thermal current(Ith)A
16
20
20
Rated working voltage(Ue)V 380 660
Rated insullation voltage (Ui)V 690
AC-3 (6Ie Ie) Electrical life (time) 0.5x 106
Operation frequency h-1 1200
AC-3 (6Ie Ie) Electrical life (time) 10x104
Operation frequency h-1 300
Mecnical life 3x106
Auxiliary contact Conventional thermal current 6A
Electrical life (time) AC-15(360VA) 0.5x106
DC-13(33W)
Coil
specifications
Rated control voltage (Us) AC: 12, 24, 45, 110, 220, 380
DC: 12, 24, 45, 110, 220
Pick-up voltage AC: 0.85~1.1Us DC: 0.85~1.1Us
Resleasing voltage AC: 0.1~0.75Us DC: 0.2~0.75Us
Coil power VA Pick-up 40
Fotain 4
Consumption 1.2W
Pick-up time 6~18ms
Releasing time 5~23ms
Power factor Making 0.8 Breaking 0.3
