CONTACTOR

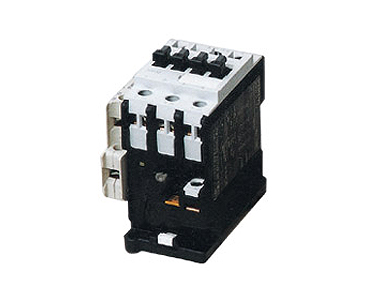

3TF AC contactor
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |



Application
3TF series AC contactor are suitable in electrical system with AC 50/60Hz, rated operational voltage up to 660V. In AC-3 usage, rated operational voltage up to 380V, rated operational current up to 630A to make or break remote motors or system. They form electromagnetic starters with suitable thermal overload or phase-failure. They are made according to IEC947, BS5424 & VDE0660.
The contactor is a straight motion mechanism having double-breaking contacts. The auxiliary contacts are arranged 2NO.2NC at most, It is employed the flexible locking connection between the contact support and core, three are no arcisolated panle in the Ie≤22A contactors. In the In≥32A contacotors. there are moulded arc-chute with arc-isolated panel. because all contacts are made of high nonfusibility and against corrosion silver alloy. All series products can be mounted by screws, le≤32A contactor also by installation rail.
